Type
|
Capacitance
|
Size
|
Frequency
|
Tolerance
|
Temperature
|
Output Type
|
Supply Voltage
|
Supply Current
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| SMD 2016有源晶振 | 15pF | 2.0×1.6×0.75 | 4MHz~54MHz | ±25ppm, ±50ppm | -40~+85℃ | CMOS | 1.8~3.3V | 5mA | ||
| SMD 2520有源晶振 | 15pF | 2.5×2.0×0.8 | 4MHz~75MHz | ±25ppm, ±50ppm | -40~+85℃ | CMOS | 1.8~3.3V | 10mA | ||
 |

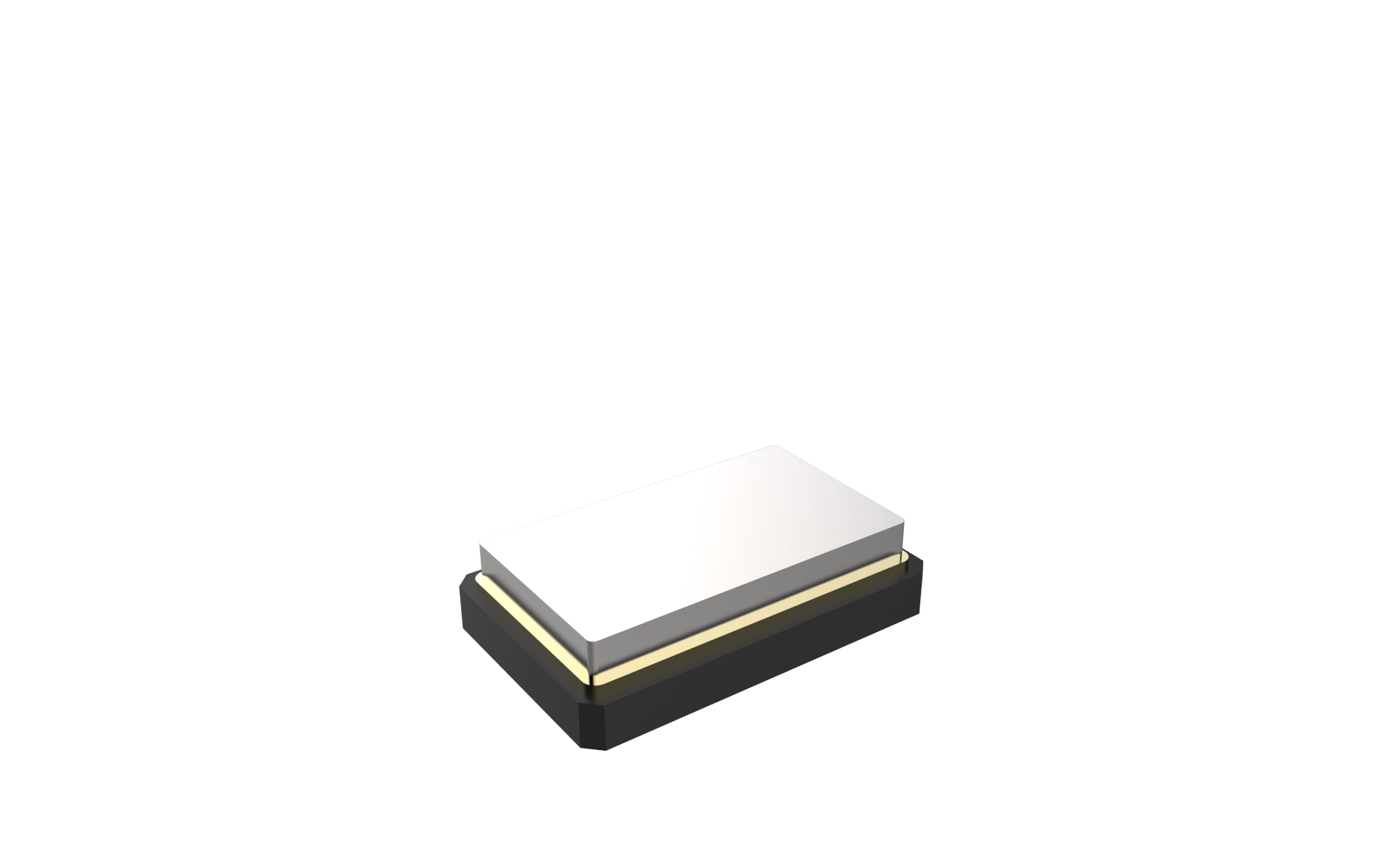

SMD 5032有源晶振 | 15pF | 5.0×3.2×1.2 | 1MHz~150MHz | ±25ppm~±50ppm | -40~+85℃ | CMOS | 1.8~5.0V | 10mA | |
 |

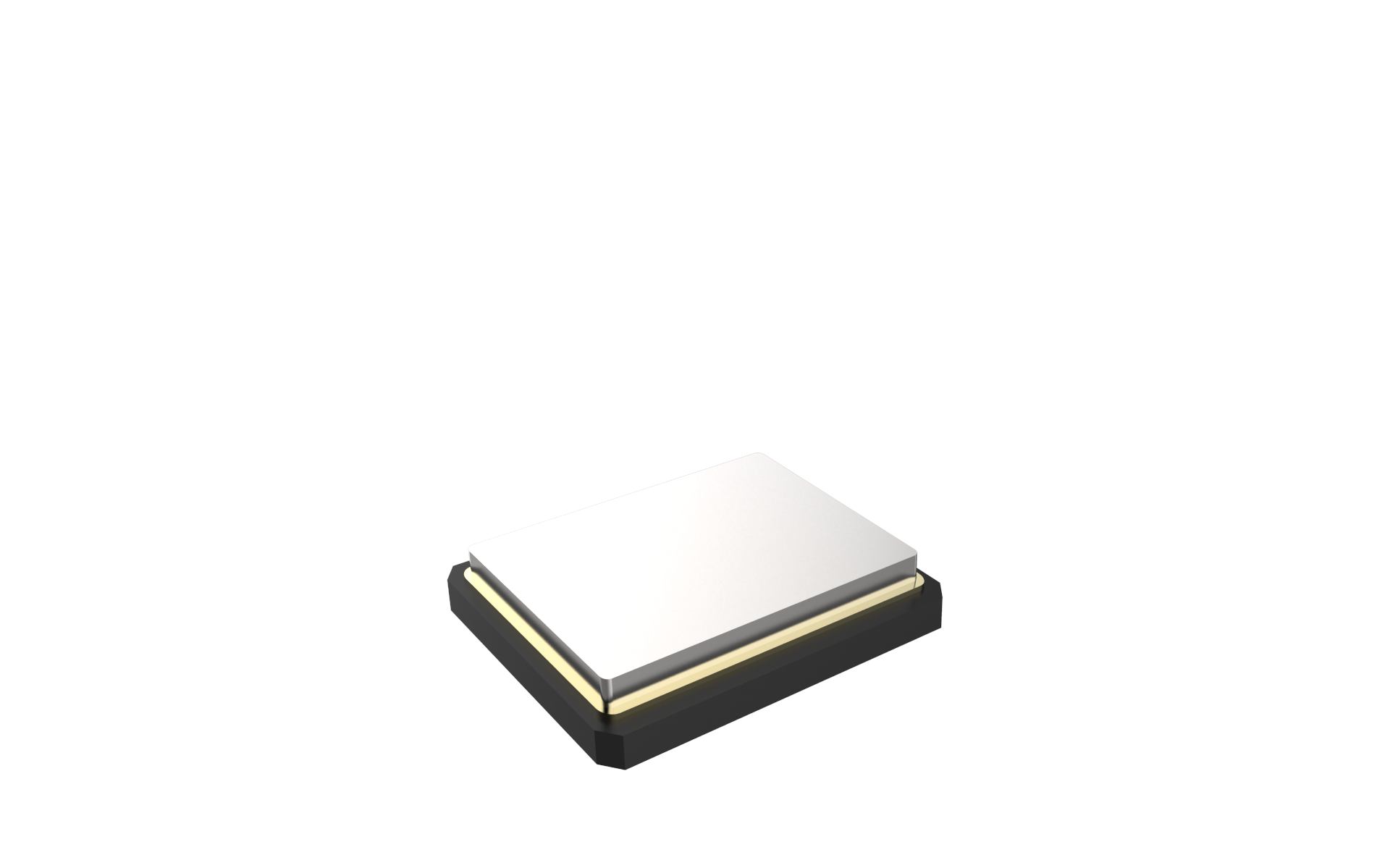

SMD 3225有源晶振 | 15pF | 3.2×2.5×1.0 | 1~125MHz | ±25ppm | -40~+85℃ | CMOS | 1.8~3.3V | 15mA | |
| SMD 7050有源晶振 | 15pF | 7.0×5.0×1.3 | 1MHz~170MHz | ±25ppm~±50ppm | -40~+85℃ | CMOS | 1.8V~5.0V | 20mA | ||
| 半尺寸晶体振荡器 | 15pF | 12.9×12.9×5.3 | 0.25MHz~180MHz | ±10ppm~±100ppm | -20~+70℃ | CMOS | 3.3V /5.0V | 30mA | ||
| 全尺寸晶体振荡器 | 15pF | 20.4×13.1×5.3 | 0.25MHz~180MHz | ±10ppm~±100ppm | -20~+70℃ | CMOS | 3.3V /5.0V | 30mA |
